  #1
Old 02-03-2012, 10:29 PM
bigbike-r bigbike-r is offline
Chatter Box

Join Date: Aug 2011
Location: a 5 minute ride from leeds bradford airport
Posts: 205
Default chop

progress on a little something i've been working on

Reply With Quote
  #2
Old 03-03-2012, 11:20 PM
onebaddaddy onebaddaddy is offline
Chat Slapper

Join Date: Apr 2011
Location: worcestershire
Posts: 68
Default

nice.
One of butlers frames? you're over on the HUC site aren't you?
__________________
Http://onebaddaddy.Wordpress.com
Frank Zappa: "Your mind is like a parachute...It's no use if it's not open"
Reply With Quote
  #3
Old 05-03-2012, 01:34 PM
bigbike-r bigbike-r is offline
Chatter Box

Join Date: Aug 2011
Location: a 5 minute ride from leeds bradford airport
Posts: 205
Default

it is, brilliant little frames. yeah im on there too, I am most places
Reply With Quote
  #4
Old 09-05-2012, 05:23 PM
bigbike-r bigbike-r is offline
Chatter Box

Join Date: Aug 2011
Location: a 5 minute ride from leeds bradford airport
Posts: 205
Default

D.I.D 3.5x17 front wheel
excel 4.25x17 rear wheel
gsxr 750 k forks and yokes

rear wheel fits spindle just needs spacing - front a little trickier as oit calls for a specialist bearing that im having trouble getting
Reply With Quote
  #5
Old 09-05-2012, 05:24 PM
droid's Avatar
droid droid is offline
Been out, but rather stay in!

Join Date: Mar 2008
Location: Tamworth
Posts: 1,338
Default

I'd want a bit more clearance out of that exhaust. mate.
Reply With Quote
  #6
Old 09-05-2012, 08:02 PM
bigbike-r bigbike-r is offline
Chatter Box

Join Date: Aug 2011
Location: a 5 minute ride from leeds bradford airport
Posts: 205
Default

there will be clearence when its finnished
Reply With Quote
  #7
Old 18-05-2012, 11:23 PM
Chris B Chris B is offline
Chatter Box

Join Date: Nov 2008
Location: doncaster
Posts: 282
Default

Looking bloody lurvly is that!
Reply With Quote
  #8
Old 03-08-2012, 05:37 PM
bigbike-r bigbike-r is offline
Chatter Box

Join Date: Aug 2011
Location: a 5 minute ride from leeds bradford airport
Posts: 205
Default


exhaust isn't going to fit without a lot of chopping, i was sure once the engine was in place and the wheels on id have enough clearence but no chance! so junking that idea and moving onto this


and adding this

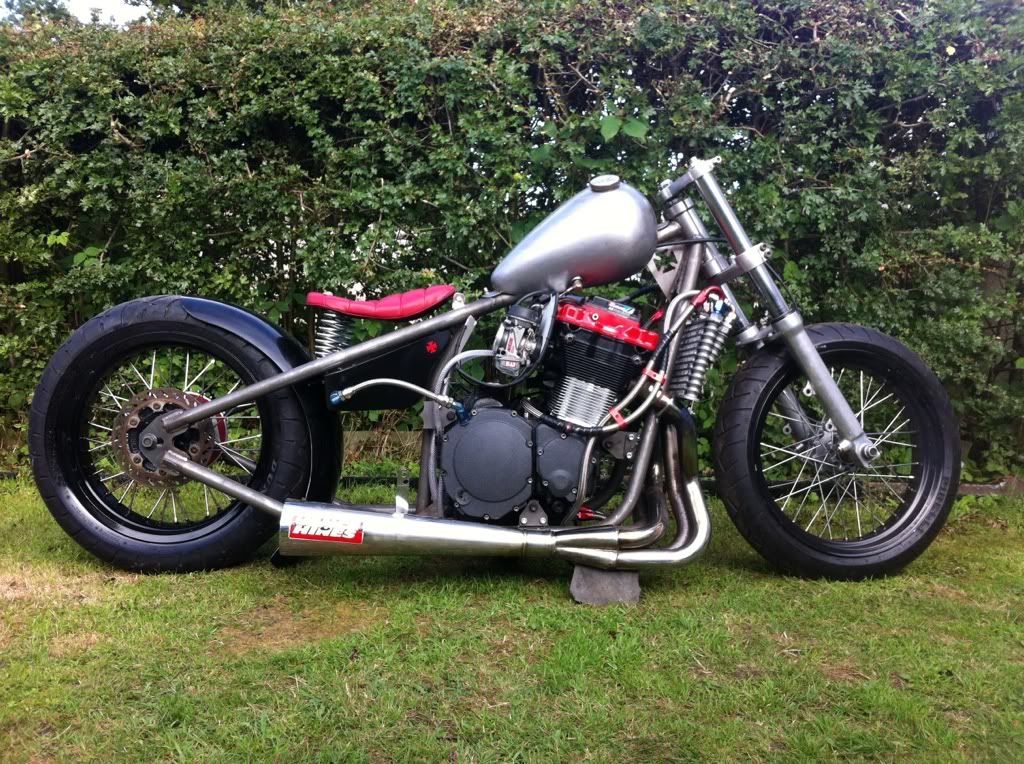

upto date pic


i thankyou
Reply With Quote
  #9
Old 02-09-2012, 11:52 AM
bigbike-r bigbike-r is offline
Chatter Box

Join Date: Aug 2011
Location: a 5 minute ride from leeds bradford airport
Posts: 205
Default

just a couple recent pics for anyone that does look in


light i think came off a honda cb, had it a while, quick action throttle and clipons

nitrous - just need to get the injectors in when the plenum is on

td04 turbo, not much room between the tyre and frame rails
frame is going off next week to be goosenecked by about 5 inches, this will make it longer give it a better look and get rid o that iron cross in the brace that i hate so much im also having the plenum for the turbo made up. i will get some allo or stainless 2.5 in pipe to carry the air rom the turbo housing and then its the headers i need to think about. should be looking better in a couple weeks when i get itall back
Reply With Quote
  #10
Old 18-09-2012, 12:44 AM
bigbike-r bigbike-r is offline
Chatter Box

Join Date: Aug 2011
Location: a 5 minute ride from leeds bradford airport
Posts: 205
Default



Well here it is all goosenecked, once I got the wheels on and the engine mounted it became apparent that things weren't gonna work, as was apparent with the vance & Hines the ground clearence is very low. The turbo sorts this problem for me but then the front rails were too far forward yet too close together to tuck the turbo in which meant it was gonna catch the wheel, the rear of the engine is too close to the back tube to give room for filters or plenum and this is something I'm still struggling around, goosenecking it has removed a few issues for me and created a whole new set of issues for me with HUC, never mind, I won't be using them in the future so hey ho and on we go. The whole back bone was removed and moved forward 6 inch and angled down more. I kept the original height and rake on the headstock as i can't really add more rake without changing to longer forks. A cross brace was put in at the front as we believe it should have one anyway and another at the top. I should be picking it up at some point tomorrow and have it rolling again by the weekend, then we can see what a difference it has made
Reply With Quote
  #11
Old 19-09-2012, 09:38 AM
wiskers wiskers is offline
Jedi Chat Master

Join Date: May 2006
Location: Caerphilly
Posts: 696
Default

Looking good

If it was me i'd be looking at some bracing round that headstock other than that it all looks good

Nice one Dai
__________________
Dyslexic Dai
Reply With Quote
  #12
Old 19-09-2012, 11:07 AM
PeteHaddock PeteHaddock is offline
Need to Get out More!

Join Date: Feb 2011
Location: lincolnshire
Posts: 467
Default

Good work mate, that thing is bonkers!

I was gonna comment on how it might be a tad uncomfy with those clip ons but with that engine + a turbo and that petrol tank, I'm guessing you'll get plenty of chances to stretch your legs every time you pass a petrol station lol.
__________________
Remember when sex was safe and motorcycles were dangerous?
Reply With Quote
  #13
Old 19-09-2012, 12:58 PM
bigbike-r bigbike-r is offline
Chatter Box

Join Date: Aug 2011
Location: a 5 minute ride from leeds bradford airport
Posts: 205
Default

the clipons as low as that make it much more comfier for me, im 6"3 and dont fit many bikes without looking like im on a kids mini bike.



Reply With Quote
  #14
Old 19-09-2012, 08:56 PM
PeteHaddock PeteHaddock is offline
Need to Get out More!

Join Date: Feb 2011
Location: lincolnshire
Posts: 467
Default

I like the clip-ons, from the side it looks at first like there are no bars!
__________________
Remember when sex was safe and motorcycles were dangerous?
Reply With Quote
  #15
Old 23-09-2012, 12:12 PM
bigbike-r bigbike-r is offline
Chatter Box

Join Date: Aug 2011
Location: a 5 minute ride from leeds bradford airport
Posts: 205
Default

footpegs will be going way back toward the rear spindle, a bit bonneville salt racer-esque

frame will require more cutting i thing to get a plenum in there
Reply With Quote
  #16
Old 30-09-2012, 08:35 AM
dixiethedog dixiethedog is offline
Chat Slapper

Join Date: Mar 2009
Posts: 94
Default

Dear me,what have you had done to the front of the frame???
Why on earth would you spend good money on a well built frame and then destroy it by chopping it about??
You must be mad?
Id sooner have a clone ranger set of HUC's.
My 3 HUC's will be different colours,so I dont get mixed up.
Poor Mr Butler must be having sleepless nights cos of you. Why oh why oh why?? he must ask??
Tut.
Reply With Quote
  #17
Old 30-09-2012, 11:12 AM
rob rob is offline
It's about time I shut the fuck up!

Join Date: May 2006
Posts: 1,809
Default

excellent work on the front of the frame. loads better that another *yawn* huc clone....
Reply With Quote
  #18
Old 30-09-2012, 12:09 PM
bigbike-r bigbike-r is offline
Chatter Box

Join Date: Aug 2011
Location: a 5 minute ride from leeds bradford airport
Posts: 205
Default

ive got to chop out the tube at the back of the engine yet too, only just enough room for a filter after you hammer the middle 2 in place - not even slightly the room for a plenum chamber - i did try pods before i opted to go turbo and couldnt get two filters on the inside without bending them.
perhaps its because im clueless and no idea what im doing or talking about
im gonna scrap the electric box and use an immitation oil tank to hide some of the electrics and if i need any more room ill steel sheet the underside of the frame tubes at the back of the engine and the top two cross braces to create a box like section with the electrics inside, which will look like isnt there with the battery box on top - i should get the cdi, fusebox and relays in there probably get it all in there laid out flat
Reply With Quote
  #19
Old 30-09-2012, 02:03 PM
bigbike-r bigbike-r is offline
Chatter Box

Join Date: Aug 2011
Location: a 5 minute ride from leeds bradford airport
Posts: 205
Default



that's the room im left to play with to get a plenum in place and be able to pull it on and off, i think by replacing the bar for one that runs straight up and down ill have much better room but of course the electric box wont fit in that space anymore

i think when its built im gonna put a sidecar on it too, for the kids really, something tubular that will compliment it, kind of like this



it could look good. granted sidecars aint to everybodies taste but ..... its my bike lol
Reply With Quote
  #20
Old 30-09-2012, 02:54 PM
devon-tony devon-tony is offline
Lucky Wombling Bastard except when he's not Wombling, when he's just a Lucky Bastard

Join Date: May 2004
Location: Devonshire
Posts: 4,371
Send a message via AIM to devon-tony
Default

love it, its different

if your after saving space how about a set of stick coils from the modern gsxr etc, I have them on my old kawasaki, no coils to hide, or big fat ht leads etc

improved running and starting, huge sparks
__________________
nowt of much use here
Reply With Quote
  #21
Old 30-09-2012, 03:06 PM
bigbike-r bigbike-r is offline
Chatter Box

Join Date: Aug 2011
Location: a 5 minute ride from leeds bradford airport
Posts: 205
Default

I looked in to stick coils before but on OSS website it seems they're a lotta hassle.... Finding ones that will fit and getting them wired something about the ohm I think I can't remember
Reply With Quote
  #22
Old 30-09-2012, 04:24 PM
dixiethedog dixiethedog is offline
Chat Slapper

Join Date: Mar 2009
Posts: 94
Default

Quote:
Originally Posted by bigbike-r View Post
ive got to chop out the tube at the back of the engine yet too, only just enough room for a filter after you hammer the middle 2 in place - not even slightly the room for a plenum chamber - i did try pods before i opted to go turbo and couldnt get two filters on the inside without bending them.
perhaps its because im clueless and no idea what im doing or talking about
im gonna scrap the electric box and use an immitation oil tank to hide some of the electrics and if i need any more room ill steel sheet the underside of the frame tubes at the back of the engine and the top two cross braces to create a box like section with the electrics inside, which will look like isnt there with the battery box on top - i should get the cdi, fusebox and relays in there probably get it all in there laid out flat
I wish id thought of that.
Reply With Quote
  #23
Old 30-09-2012, 04:27 PM
dixiethedog dixiethedog is offline
Chat Slapper

Join Date: Mar 2009
Posts: 94
Default

If you were to have a sidecar,and god knows why youd want one of them,to no doubt spoil the bike even more,you could hide the leccy bits in there.
Youd no doubt need a bomber seat made out of alloy too.
http://www.swenchoppers.com/Events/m...?g2_itemId=870

Theres no hope for you.
Reply With Quote
  #24
Old 30-09-2012, 04:28 PM
dixiethedog dixiethedog is offline
Chat Slapper

Join Date: Mar 2009
Posts: 94
Default

Give me a HUC clone anyday.
Reply With Quote
  #25
Old 30-09-2012, 04:38 PM
dixiethedog dixiethedog is offline
Chat Slapper

Join Date: Mar 2009
Posts: 94
Default

Im watching with interest to see what else you can do with this?
Reply With Quote
  #26
Old 30-09-2012, 05:07 PM
bigbike-r bigbike-r is offline
Chatter Box

Join Date: Aug 2011
Location: a 5 minute ride from leeds bradford airport
Posts: 205
Default

Quote:
Originally Posted by dixiethedog View Post
I wish id thought of that.
You did haha

The sidecar I don't want on all time I want it to be totally detachable so that when its not on there's no trace it ever wears one, so electric needs to stay strictly to the bike. I'll prob build the bike and get it finnished and do the sidecar as a seperate project.
Reply With Quote
  #27
Old 01-10-2012, 04:40 PM
dixiethedog dixiethedog is offline
Chat Slapper

Join Date: Mar 2009
Posts: 94
Default

I hate being negative,but i think the pics of the bike wearing a Vance and Hines pipe looks far better than the extended front end arrangement??
You'd need to be 6ft4 tall to ride it the way youve done it???
The ideas you have of fitting a turbo and nitrous put you in true "fruit loop" territory. I applaud you for your madness.
I know Rob mentioned clone in regard to HUC's,so he must agree that an original HUC will be better than a modified one?
So that'll be me and him standing side by side tutting and shaking our heads together then!.
Reply With Quote
  #28
Old 12-10-2012, 09:28 AM
shaggy696969's Avatar
shaggy696969 shaggy696969 is offline
Banned

Join Date: Sep 2005
Posts: 7,654
Default

I think this is an awesome build. ...... keep the pic's coming, indeed true fruit-loop territory ...... Brilliant !
Reply With Quote
  #29
Old 12-10-2012, 05:28 PM
droid's Avatar
droid droid is offline
Been out, but rather stay in!

Join Date: Mar 2008
Location: Tamworth
Posts: 1,338
Default

Dumb question time.

What does 'HUC' mean?
Reply With Quote
  #30
Old 12-10-2012, 05:54 PM
shaggy696969's Avatar
shaggy696969 shaggy696969 is offline
Banned

Join Date: Sep 2005
Posts: 7,654
Default

Hard Up Chopper's .... frame makers.
Reply With Quote
